Marine LED Navigation Light

Slim & Sleek Flush Fit Boat Lights

This Navigation Light is designed from the ground up based on the mounting concept of our Flush Mount LED Bolts. Aluminum housing has high resistance to corrosion and the flush mount design makes the LED not noticeable after installed. They are completely sealed and watertight, that means they can be easily installed on the bow of your boat. The Red one is to be installed on Port side, and the Green is on Starboard side.

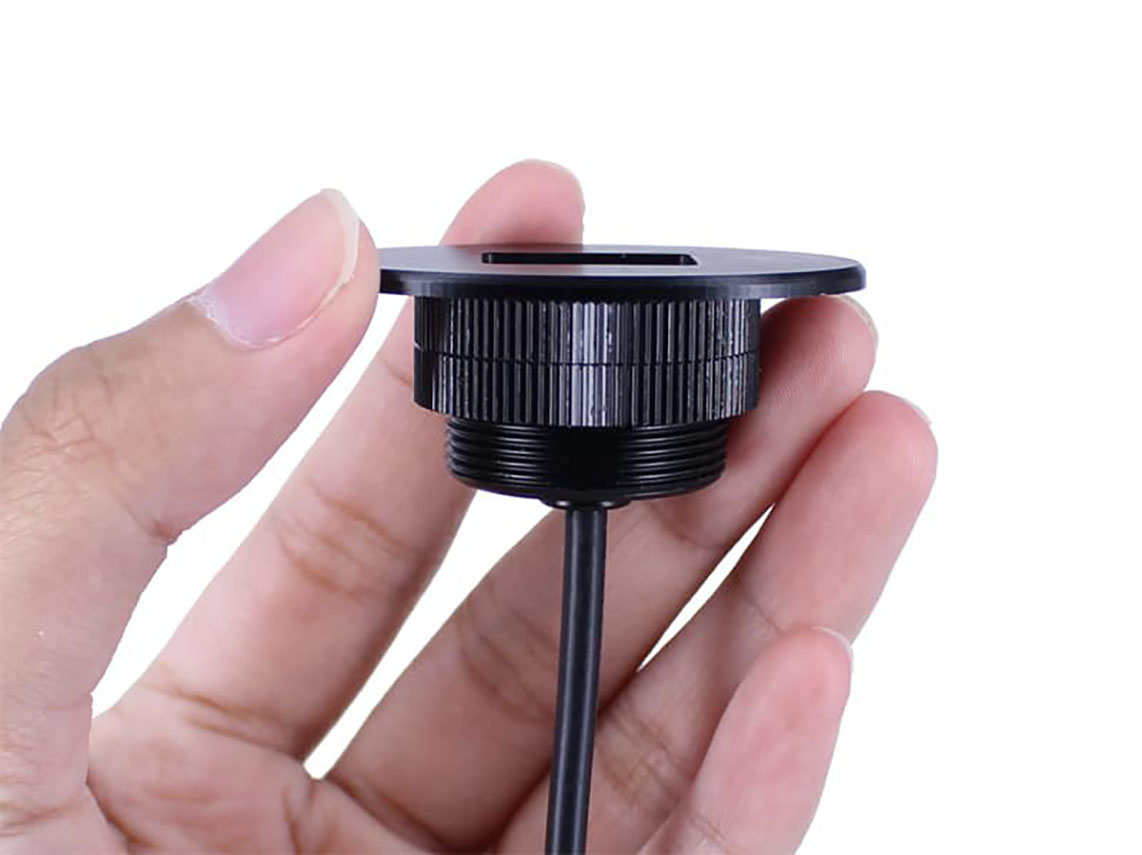

Easy to install. Simply drill a hole, feed the wire and LED through and tighten the nuts from the back side. Black and Silver housing colors are available. Two nuts are included for each light. Two nuts can help keep everything secure, especially when exposed to vibrations.


  • Category: Flush Mount LED | Marine

Variations

Marine LED Navigation Light
Style:
Aluminum
Housing Color:

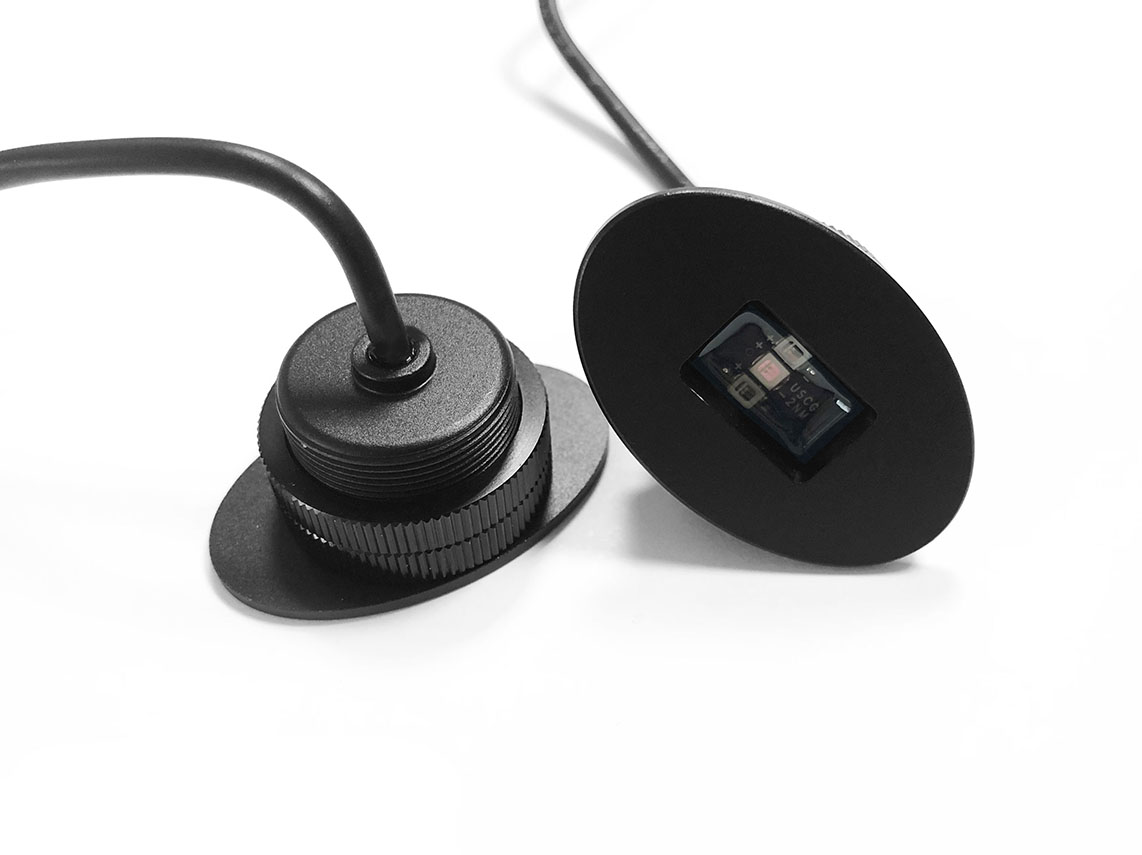

Black

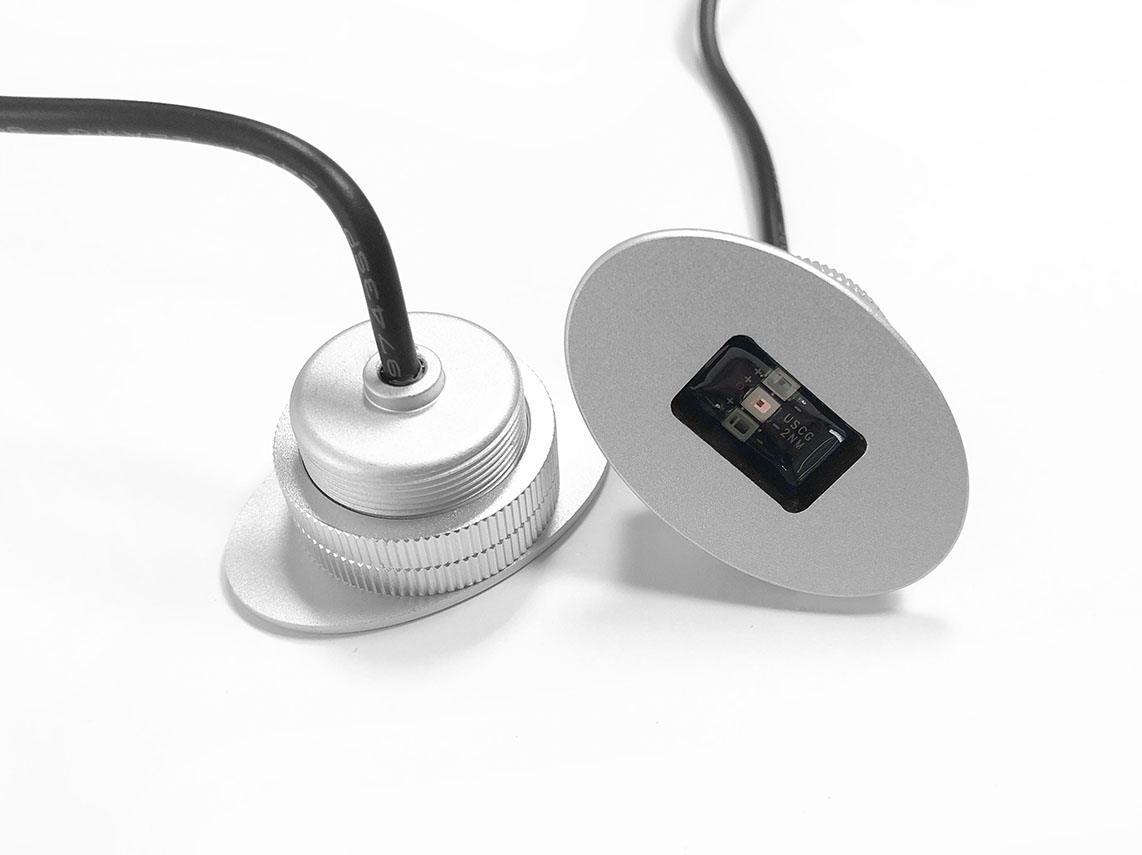

Silver

Beam Angle112.5 degreeConnection TypeMarine grade cable
DimmableNoIP RatingIP68
LED TypeSMD 2835Polarity SensitiveYes
Operating Voltage Range12 VDCWire Gauge22 AWG
Weight47 grams (per light)HousingAluminum
Wire Length1 meterDiameter24mm
Dimension: 47mm (W) x 30mm (H)

Version Emitting Color CCT (K)/ Wavelength (nm) Lumen (lm) Current @ 12VDC (mA)

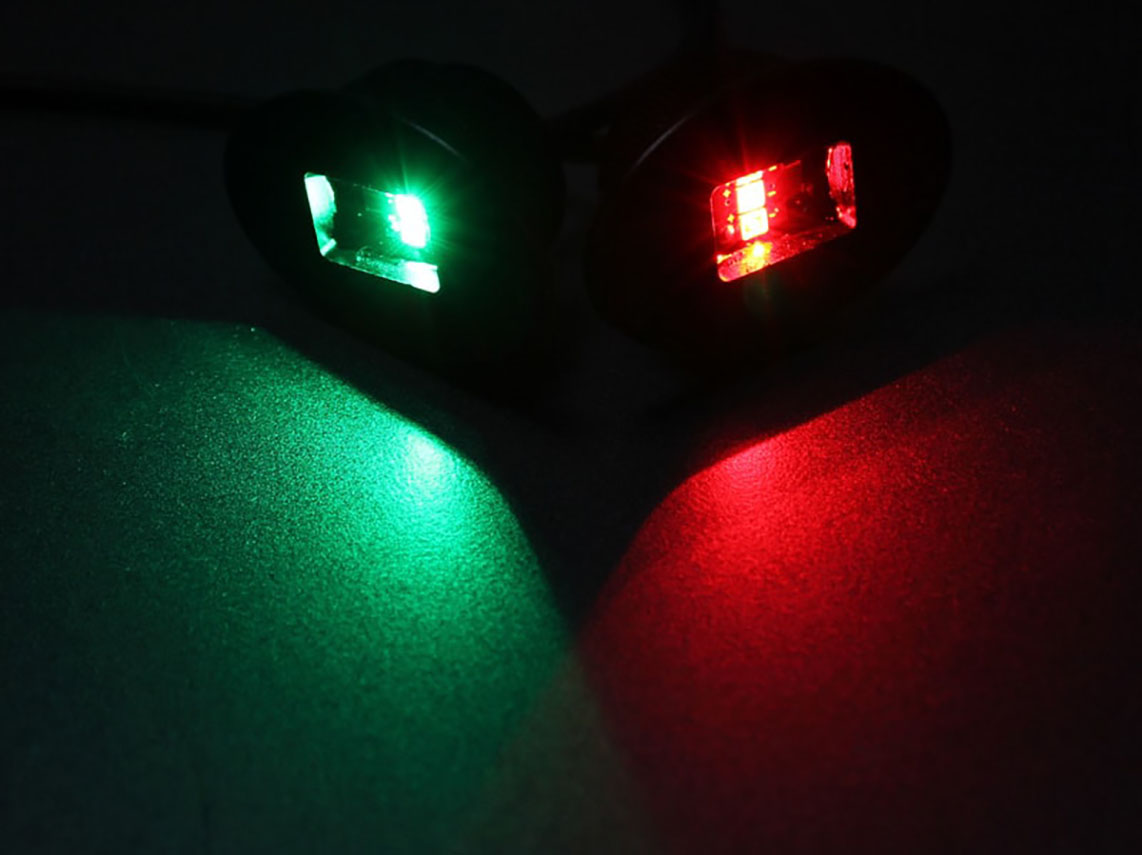

Port Side Red 625 19 60
Starboard Side Green 521 31 60

* What is CCT (Correlated Color Temperature)?

File Description
Technical Drawing - Navigation Lights
